Iceblink
V3

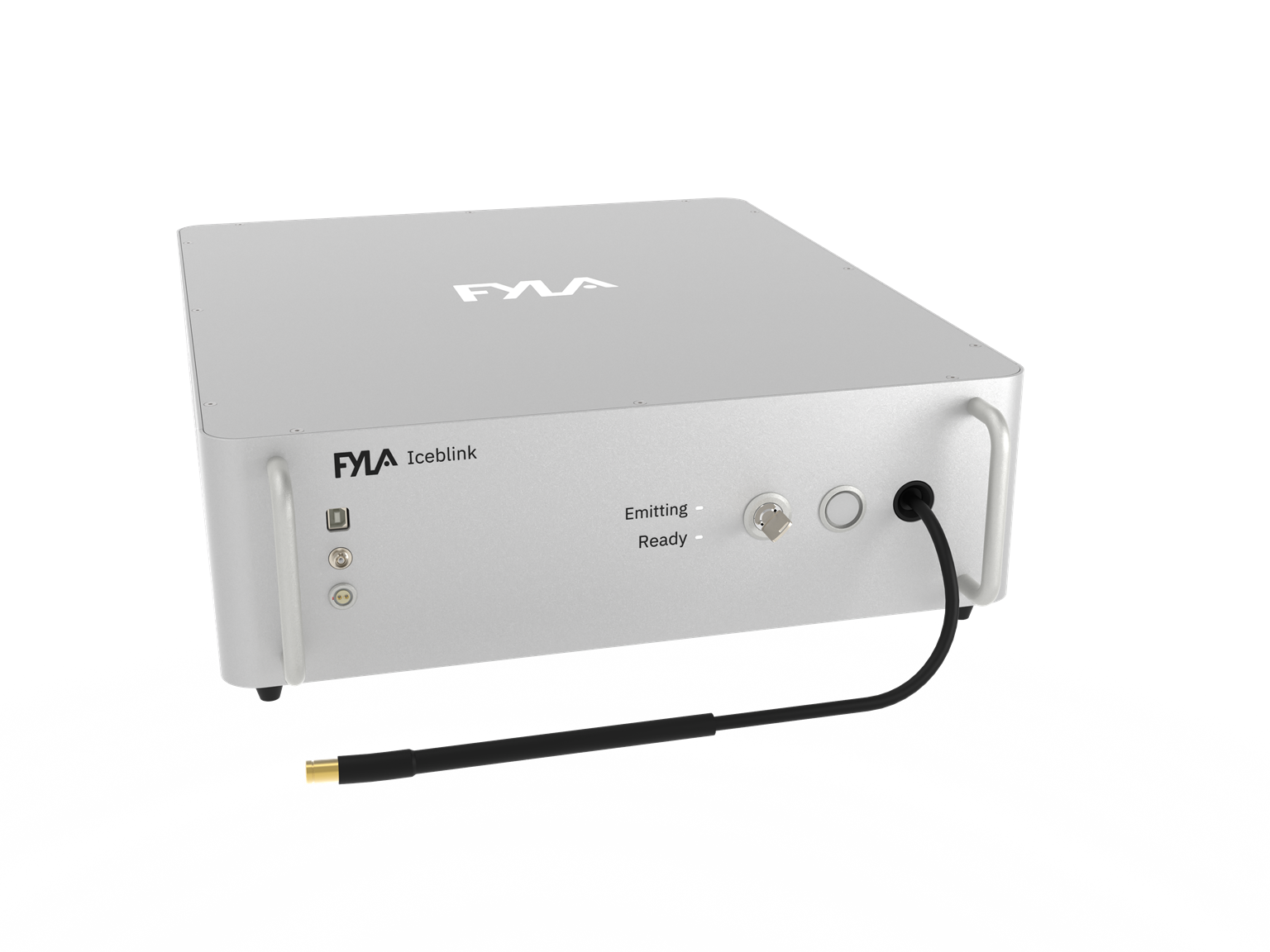

Supercontinuum Fiber Laser
Spectral Range:
450 – 2300 nm
Average Power:
≥ 3 W
Visible Range (450-850 nm) Average Power:
≥ 150 mW
Best Power Stability
≥ 150 mW Visible Power
VIS+NIR Power Balance
Iceblink is a supercontinuum fiber laser covering the 450 – 2300 nm spectral range with over 3W of average power and superior stability (≤ 0.5 % (std. dev.).
The spatial coherence and broad spectrum of the Iceblink makes it a great alterative to classic lamps, single-line lasers, LEDs, and ASE sources.
It is a very versatile white light source with a world of applications in the scientific and industrial sectors, including absorption/transmission measurements for material characterization, VIS, NIR and IR spectroscopy, single molecule spectroscopy and fluorescence excitation.
"Our research group MiBAR (York University) has been using the Iceblink from FYLA LASER for our biophotonics research. It’s broad band capability from visible to NIR makes it ideal for our characterizations and in our applications. Its high power output and stability ensure consistent performance in our testings and sensitive measurements. Additionally it is a flexible laser and extremely easy to operate by software. The FYLA LASER is a great addition to our biophotonics lab!"
Read the paper - DNA Origami Assembled Nanoantennas for Manipulating Single-Molecule Spectral Emission
Read the paper - Enhanced Light Sheet Elastic Scattering Microscopy by Using a FYLA Supercontinuum Laser
Technical Specifications
Repetition Rate
80 ± 2 MHz
Average Power
≥ 3 W
Visible Range (450-750 nm) Average Power:
≥ 150 mW
Pulse Duration
≤ 10 ps (@ 1060 nm) / ≤ 250 ps full spectrum*
Power Stability
≤ 0.5 % (std. dev.)
Polarization
Unpolarized
Output Port
Single Mode Fiber, 1.0 m length (customizable)
Optical Output
Collimated (in the range 450-1000 nm), Single-mode across full spectrum
Synchronization / Connections
TTL (SMA); NIM (SMA) Under request
Beam Diameter @ 1 m of distance
@ 470nm ≤ 2mm/@ 580nm ≤ 2.5mm / @ 725nm ≤ 3.5mm/@ 1150nm ≤ 5.5mm
Spatial Mode Quality (M2 )
≤ 1.2
Cooling
Thermoelectric cooler + air cooling
Power Requirements
110V - 220V / 50Hz-60Hz
Operating Temperature
20 - 30 ºC
Storage Temperature
0 - 60 ºC
Dimensions
436x560x151 mm (WxDxH)
Control:
Manual / Software via USB
Safety Connections:
Interlock / Key

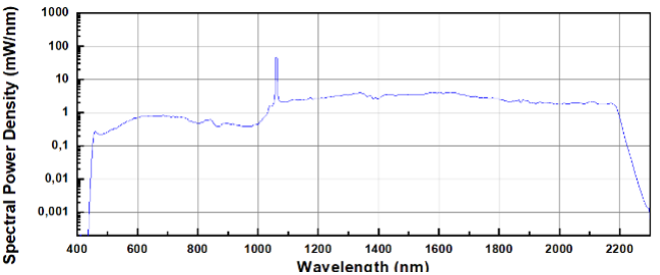

Optical Spectrum
Security
This product is a Class 4 laser. Appropriate safety measures according to such laser class should be taken in its installation and use SPECTRAL PROFILE AND OTHER DETAILED SPECS UNDER REQUEST
SPECTRAL PROFILE AND OTHER DETAILED SPECS UNDER REQUEST
*Estimated value
Laser
Accessory
Boreal - Tunable Visible Range
Is the accessory for supercontinuum lasers to choose any wavelength in the visible range (400 - 1000 nm). The perfect white laser plug-in accessory for bioimaging, nanophotonic and more.
Iceblink Applications & References
Iceblink for Optical characterization of material and devices, Life Science Microscopy and Astronomical Research.

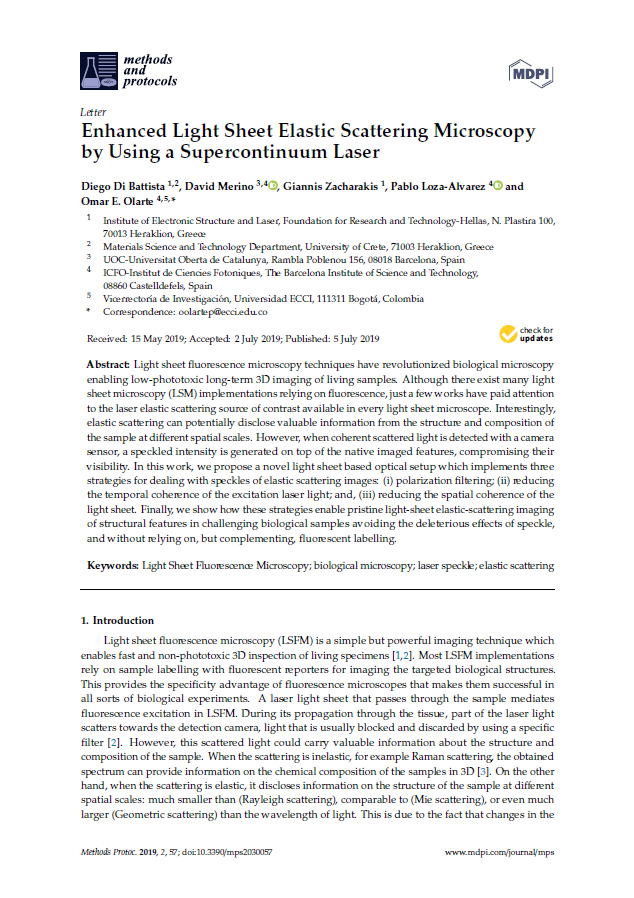

Enhanced Light Sheet Elastic Scattering Microscopy by Using a Supercontinuum Laser
Light sheet fluorescence microscopy techniques have revolutionized biological microscopy enabling low-phototoxic long-term 3D imaging of living samples. Although there exist many light sheet microscopy (LSM) implementations relying on fluorescence, just a few works have paid attention to the laser elastic scattering source – Read more.
Diego Di Battista, David Merino, Giannis Zacharakis, Pablo Loza-Alvarez and Omar E. Olarte

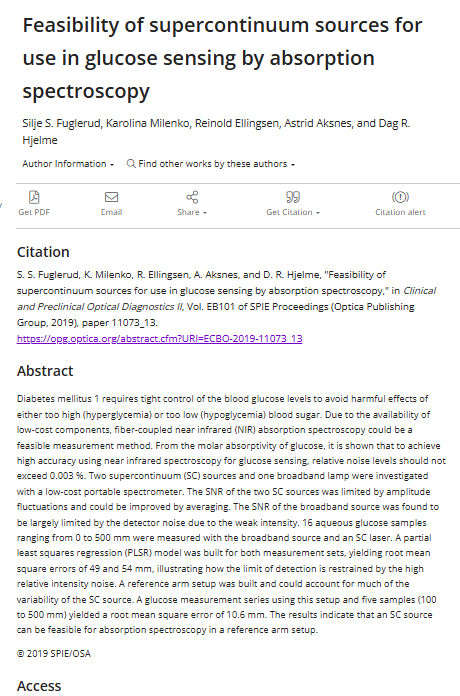

Feasibility of supercontinuum sources for use in glucose sensing by absorption spectroscopy
Diabetes mellitus 1 requires tight control of the blood glucose levels to avoid harmful effects of either too high (hyperglycemia) or too low (hypoglycemia) blood sugar. Due to the availability of low-cost components, fiber-coupled near infrared (NIR) absorption spectroscopy could be a feasible measurement method. – Read more.
Silje S. Fuglerud, Karolina Milenko, Reinold Ellingsen, Astrid Aksnes, and Dag R. Hjelme

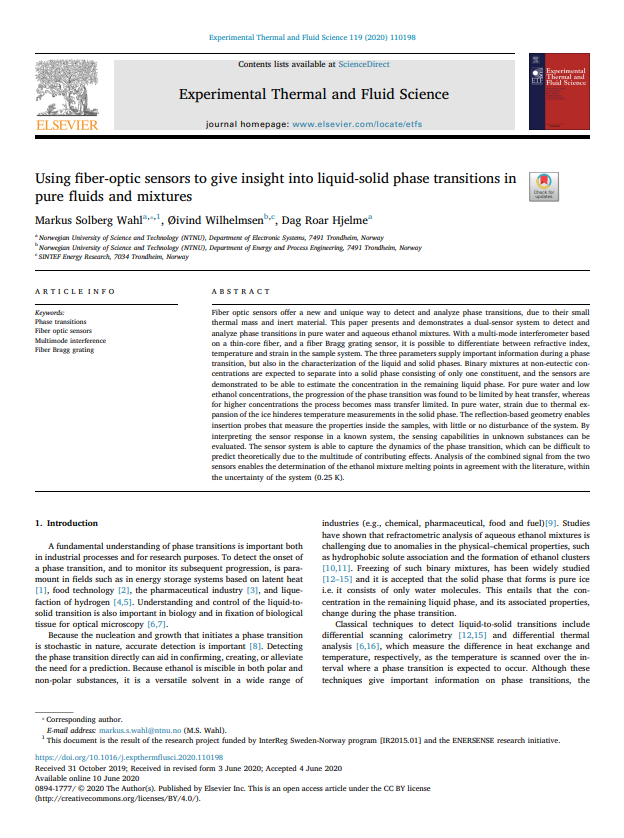

Using fiber-optic sensors to give insight into liquid-solid phase transitions in pure fluids and mixtures.
Fiber optic sensors offer a new and unique way to detect and analyze phase transitions, due to their small thermal mass and inert material. This paper presents and demonstrates a dual-sensor system to detect and analyze phase transitions in pure water and aqueous ethanol mixtures. – Read more.
Markus Solberg Wahl, Øivind Wilhelmsen, Dag Roar Hjelme
need more information?
Iceblink FAQs
What type of fiber laser is FYLA Iceblink?
FYLA Iceblink is a supercontinuum fiber laser, also referred to as a supercontinuum white light laser, covering a broad spectral range from 450 to 2300 nm. It delivers more than 3 W of average output power with excellent stability (< 0.5 % standard deviation), making it a versatile broadband light source for research and industrial applications.
FYLA Iceblink supercontinuum fiber laser vs. Traditional lamps, leds, and slds: what are the advantages?
Compared to traditional broadband light sources—such as halogen or tungsten lamps, xenon or mercury arc lamps, LEDs, and SLDs, the FYLA Iceblink supercontinuum laser source offers:
- Much higher brightness
- High laser spatial coherence and single‑mode beam quality (M² ≤ 1.2)
- Continuous broadband emission without spectral gaps
- Excellent beam stability and repeatability
As a result, FYLA Iceblink enables efficient coupling into integrated optical systems, higher signal‑to‑noise ratios, and improved measurement repeatability, replacing multiple discrete sources with one compact laser.
Why Is FYLA Iceblink Supercontinuum fiber laser well suited for Spectroscopy?
FYLA Iceblink provides continuous spectral coverage from VIS to IR with high power stability and spatial coherence. This ensures accurate measurements, high sensitivity, and reliable long‑term reproducibility for time‑resolved spectroscopy and steady‑state techniques.
Can FYLA Iceblink supercontinuum fiber laser be used for Fluorescence Microscopy and Bioimaging?
Yes. FYLA Iceblink SC Fiber Laser is commonly used in:
- Fluorescence lifetime imaging
- FRET, TIRF, and CLSM microscopy
- Single‑molecule fluorescence experiments
Its broadband output enables excitation of multiple fluorophores from a single broadband laser source, while spatial coherence ensures uniform illumination.
How does FYLA Iceblink compare to FYLA Iceblink PRO supercontinuum fiber laser?
FYLA Iceblink operates at a fixed repetition rate (80 MHz) and is optimized for applications that require stable broadband illumination without temporal modulation. Iceblink Pro SC Fiber Laser, in contrast, adds a pulse picker and variable repetition rate, making it suitable for time-resolved techniques such as FLIM or TCSPC. Choosing between them depends on whether temporal control is required.
Can FYLA Iceblink supercontinuum fiber laser be combined with wavelength-selective accessories?
Yes. FYLA Iceblink SC Fiber Laser can be used together with FYLA Boreal tunable filters, which allow precise wavelength selection in either the visible or near-infrared range. This enables narrowband excitation while retaining the flexibility of a broadband supercontinuum source.
